Axicon 15000
Linear and 2D barcode verifier
The Axicon 15000 barcode verifier is designed to read both linear and twodimensional
matrix barcodes. It can verify linear barcodes with a maximum
length of 51 mm, and 2D barcodes with a maximum size of 51 mm x 31 mm
(2.0” x 1.25”). All the symbols captured in the field of view are verified
individually, and the user simply selects each barcode in turn to see the
specific results. Both linear and matrix barcodes can be assessed at the

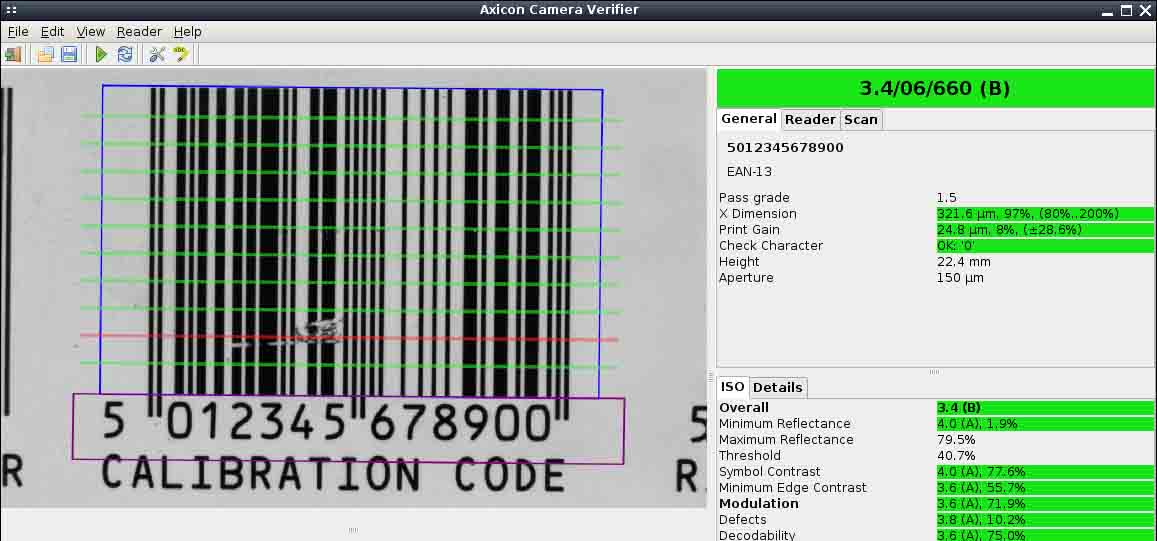

same time. The verification of linear symbols automatically uses ten samples
throughout the height of the barcode, so it is faster than using conventional
linear barcode verifiers.
Typical applications

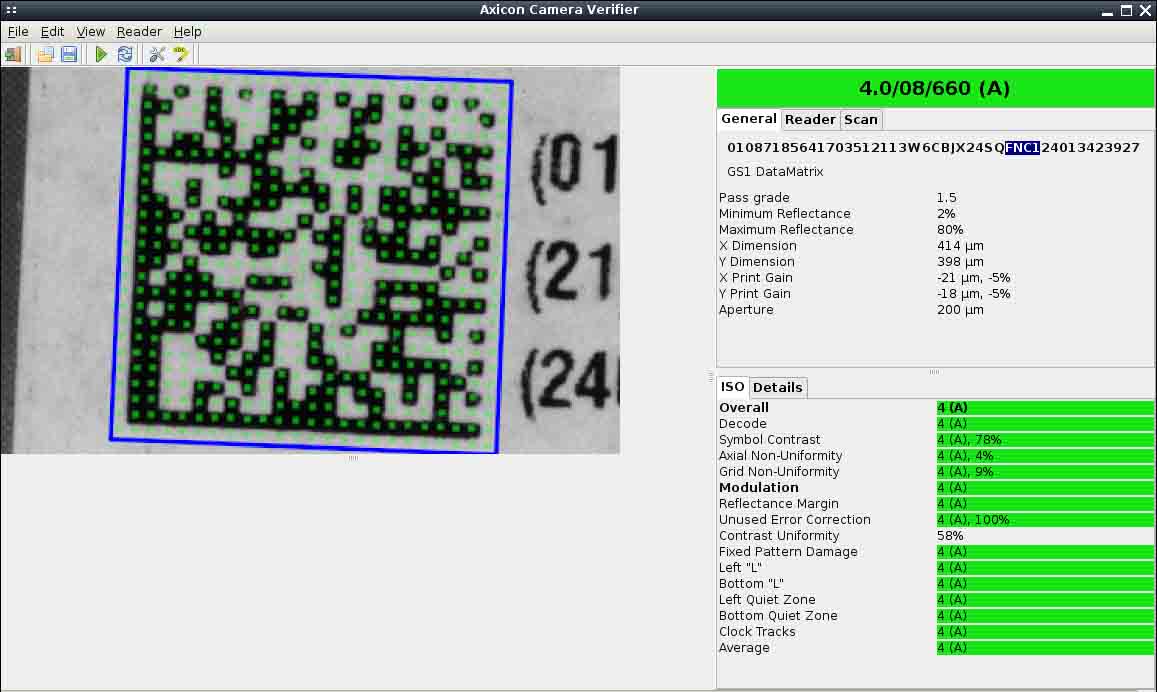

Two-dimensional matrix barcodes such as GS1 DataMatrix used on healthcare
products, and QR Codes used for marketing purposes to encode product
website addresses. Retail point-of-sale barcodes (all the EAN/UPC options)
can also be verified.
Traceability features
Verification results, including an image of the barcode, can be saved to file.
These files can be used for remote diagnosis and can be printed. The Axicon
software provides for automatic saving of all these files if this is required for
ISO 9001 traceability requirements.
Software Specifications
Symbologies verified
EAN-8, EAN-13, UPC-A, UPC-E, ITF-14, GS1-128, GS1 DataMatrix, GS1 QR Code, Data Matrix,
QR Code, Code 39, Code 93, Code 128, Codabar, ITF, MSI Plessey.
Analysis performed on
linear symbologies
Full ISO/IEC 15416 parameter analysis average bar gain, check digit validation, data length, nominal bar width (x-dimension), symbol structure, quiet zone validation, wide to narrow ratio.
Analysis performed on
2D symbologies
Full ISO/IEC 15415 parameter analysis (parameters vary according to the symbology). Nominal bar width (x-dimension), average bar gain.
Data analysis
Data content checker (for Application Identifiers with GS1-128, GS1 DataBar, GS1 DataMatrix and GS1 QR Codes), and other symbols via plugins.
Logging
Scan saving and loading - stores complete details of scan file data. Allows for remote diagnostics and also for increased traceability. Autosaving of scans for audit trail purposes.
Multi-language
English, French, Spanish, Danish, Dutch, Slovenian. Other languages on request
Hardware Specifications
Dimensions
250 x 140 x 130 mm (9.8”x 5.5” x 5.1”) - Maximum image size 51mm x 31mm (2.0” x 1.25”)
Weight
1.36 Kg (48 oz)
Construction
Aluminium, CCD sensor, LED illumination
Power consumption
Current draw 360mA – supplied from USB host.
Aperture reference
numbers
05, 06, 08, 10, 16 and 20. The software automatically identifies the symbology and its nominal bar width (x-dimension) and adjusts the aperture size to comply with the symbology specifications and relevant ISO/IEC standard.
Wavelength of light
660 nm
All trademarks are acknowledged as belonging to their respective companies. As Axicon continually improves its products, the specifications and features explained in this document are subject to change without notice.
Church Road, Weston on the Green, Oxfordshire, OX25 3QP, UK
Tel: +44 (0)1869 351155 | Email: sales@axicon.com
Web: www.axicon.com
General Information
Report generation
A report can be produced via the in-built report generator, and saved or printed. The report generator can create reports in .pdf, .html, .txt, .csv or other formats (Append facilities are available for any format which supports this). The report generator is customisable via scripts and templates so reports can be tailored to individual requirements.
System requirements
PC running any currently supported version of Windows - USB 2.0
Environmental
Operating temperature: 10° to 40°C - Storage temperature: -20° to 70°C
Relative humidity: 25% to 80% @ 40°C non-condensing
Regulatory approvals
CE certified, RoHS compliant. Meets ISO/IEC 15415, ISO/IEC15416, ISO/IEC 15426-1 and ISO/IEC 15426-2 standards. Has all the features necessary to meet the requirements of 21 CFR part 11.
Warranty
Two years parts and labour – return to bench
